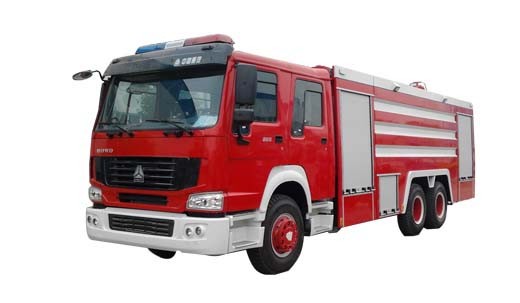

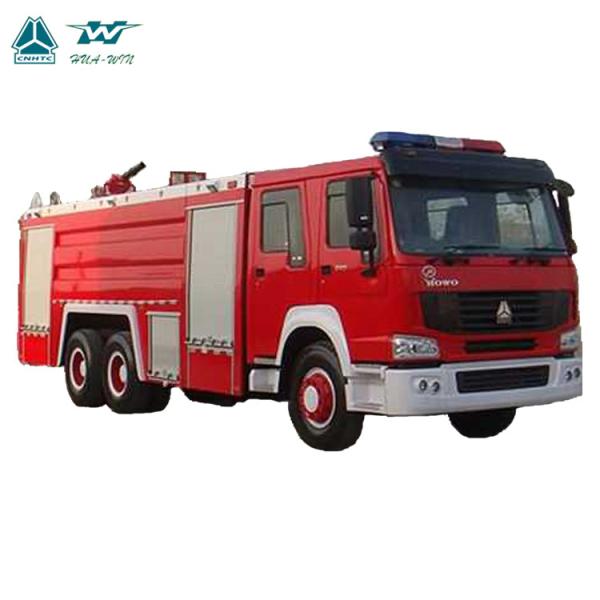

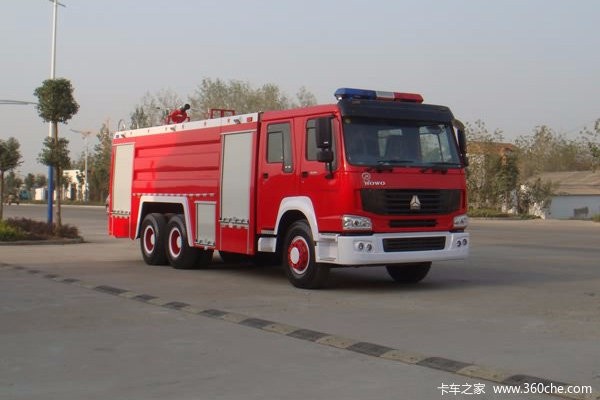

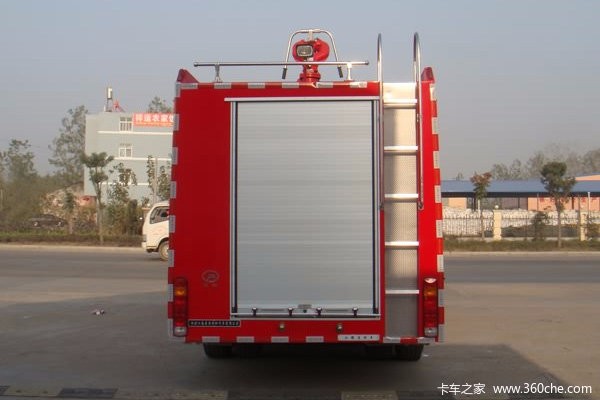

Specifications for HOWO Fire Fighting Truck
|
| | Driving Model: 6x4 Left Hand Drive or Right Hand Drive |
| Crew cabin, 2-arm windscreen wiper system with three speeds, damped adjustable driver's seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn, air conditioner, with transverse stabilizer, with 4-point support fully floating suspension + shock absorber. |
| Condition: brand new |
| | Model: SINOTRUK WD615.62 |
Type: Diesel 4-stroke direct injection diesel engine, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling. Emission Standard: Euro II
|
| Displacement: 9.726L |
| | HW19710 manual gearbox, 10F & 2R |
| Ratio: 14.28, 10.62, 7.87, 5.88, 4.38, 3.27, 2.43, 1.80, 1.34, 1.00, 13.91(R1), 3.18(R2) |
| Steering | ZF power steering, model ZF8118, hydraulic steering with power assitance |
| | HF9, 1x9000 KGS
Steering with doubleT-cross section beam |
| | ST16, 2x16000 KGS
Pressed axle housing, central single reduction with hub reduction and with differential locks between wheels and axles.
Ratio: 4.8 |
| | Service brake: dual circuit compressed air brake
Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels
Auxiliary brake: engine exhaust brake |
| | Operating voltage: 24 V, negative grounded
Starter: 24 V, 5.4 Kw
Alternator: 3-phase, 28 V, 1500 W
Batteries: 2 x 12 V, 165 Ah
Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light |
| Tires | 315/80R22.5 or 12R22.5, tubeless tires with one spare tire.
Optional: 12.00R20, radial tires |
| Tank Capacity | Water Tank Capacity: 10,000 Liters
Foam Tank Capacity: 2,300 Liters |
| Cargo Body | Fire Pump Model: CB20.10/30.60-XZ
Monitor Model: PL48
Water Pump Flow: 60/30 L/s
Water Pump Pressure: 1.0/2.0 Mpa
Monitor Flow Rate: 48 L/s
Monitor Range > = 60 m
Water Pumper Inlet Diameter: 1*150 mm
Water Pumper Outlet Diameter : 4*80 (normal pressure)& 2*65(medium pressure) mm
Water Tank Inlet Diameter: 4*80 mm
Proportioning Mixer: PH64 |
| Overall Dimension | 10080×2496×3000 mm |
