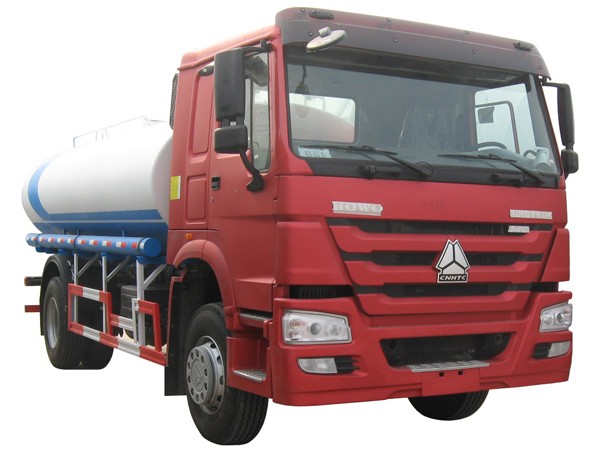

Specifications for HOWO Water Tanker Truck 10,000 Liters
|
| | Driving Model: 4x2 Left Hand Drive or Right Hand Drive |
| HW76 cabin, with one sleeper and two seats, 2-arm windscreen wiper system with three speeds, damped adjustable driver's seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn, air conditioner, with transverse stabilizer, with 4-point support fully floating suspension + shock absorber. |
| Condition: brand new |
| | Model: SINOTRUK WD615.62 |
Type: Diesel 4-stroke direct injection diesel engine, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling. Emission Standard: Euro II
|
| Displacement: 9.726L |
| | HW13710 manual gearbox, 10F & 2R |
| Ratio: 14.28, 10.62, 7.87, 5.88, 4.38, 3.27, 2.43, 1.80, 1.34, 1.00, 13.91(R1), 3.18(R2) |
| Steering | ZF power steering, model ZF8118, hydraulic steering with power assitance |
| | HF7, 1x7000 KGS
Steering with doubleT-cross section beam |
| | MCY13, 1x13000 KGS
Pressed axle housing, central single reduction with hub reduction and with differential locks between wheels and axles.
Ratio: 4.11 |
| | Service brake: dual circuit compressed air brake
Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels
Auxiliary brake: engine exhaust brake |
| | Operating voltage: 24 V, negative grounded
Starter: 24 V, 5.4 Kw
Alternator: 3-phase, 28 V, 1500 W
Batteries: 2 x 12 V, 165 Ah
Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light |
| Tires | 315/80R22.5 or 12R22.5, tubeless tires with one spare tire.
Optional: 12.00R20, radial tires |
| Fuel Tank | 350 L |
| Tank Body | 10 Cubic Meters, Euro Standard Valves |
| Overall Dimension | 8300*2500*3050 mm |
