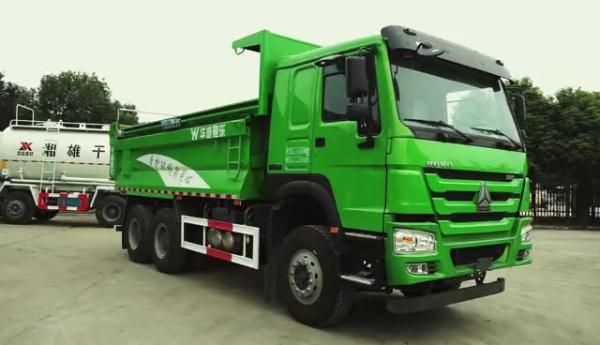

HOWO Philippines 6X4 Euro4 380HP 19CBM Tipper Truck
Truck Features:
1. The truck can work under the temperature from 41C to + 46C day and night, elevation up to 5000m high. The options for the truckare ABS system, concentrated lubricating system, hydraulic windlass, etc.
2. The cab of HOWO series off-road vehicle is four-point suspended and installed the domestic originally created horizontal stabilizer for cab as well as strong protector frame to prevent front striking Thus the cab has been thought of the safest domestic cab by specialists.
3. Equipped with such advanced parts as CNHTC WD615 series Euro-l/ Euro lll turbine turbocharged inter-cooled diesel engines, power ranging from 266hp to 300hp, CNHTC transmission, with FULLER transmission for alternative,ZQC1200 transfer case, strengthened drive axle, WABCO brake system and exported ZF8098 traversing mechanism.
4. Tough chassis for bad working conditions. Front tipping and middle tipping to meet different dump box size.

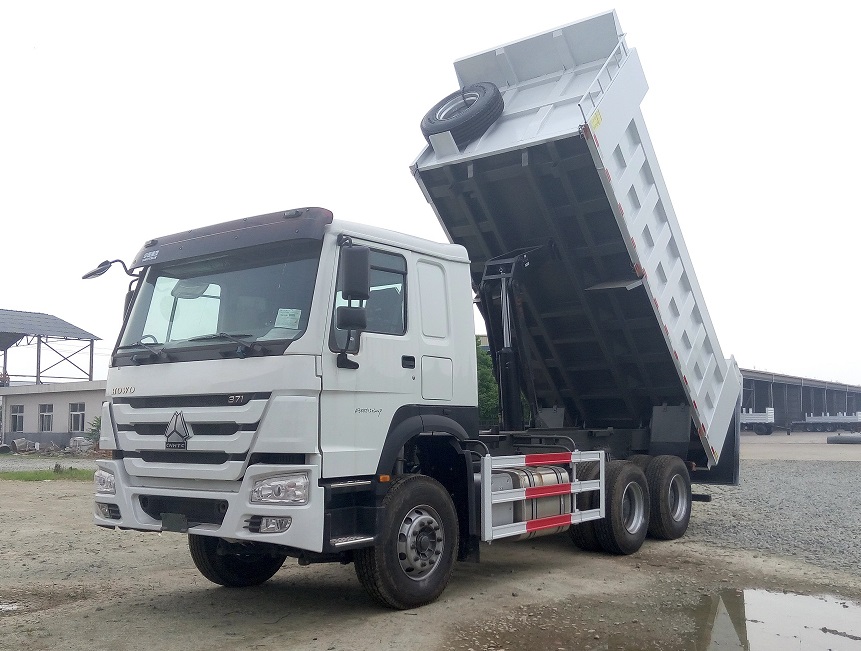

Details photos for reference:
Specification:
| Truck Chassis | Driving type 6x4 LHD |
| Cabin | HW76 standard cabin, with two seats and one sleeper, with A/C, as attached photo for ref. | |
|
| Vehicle Main Dimensions | Overall dimensions (L x W x H)mm | 8650x2496x3400 |
| Wheel base (mm) | 3825+1350 |
| Weight in KGS | Tare Weight | 12500 |
| Front axles loading capacity | HF9, 1x9000 |
| Rear axles loading capacity | HC16, 2x16000 |
| Total loading capacity | 30000 |
| Engine | Brand | SINOTRUK |
| Model | D10.38-40 |
| Type | 4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling |
| Horse Power(HP)/(RPM) | 380HP |
| Emission standard | Euro 4 |
| Gearbox | HW19710, 10 forward & 2 reverse |
| Clutch | Reinforced diaphragm clutch 430 |
| Steering Gear | ZF, power steering, hydraulic steering with power assistance from Germany |
| Fuel tank (L) | 300L |
| Water brake system | 200L |
| Tire | 12.00R20 steel tire, 11 pcs including one spare tire |
| Dump body | Dimension | (L x W x H)mm | 5600x2300x1500 |
| Thickness | Floor 8mm, side 6mm |
| Steel | Q235 high strength steel |
| Shape | Square shape |
| Hydraulics | Tipping Type: Middle tipping, China brand hydraulic system |
Shipment by different vessels:
Our Advantages:
1) Favorable price: Factory price, very competitive in the market. We, SINOTRUK Hubei Huawin is SINOTRUK branch factory.
2) In time Warranty: One year or 100,000km for on road trucks as tractor truck or 6 months or 60,000km for off road trucks as dump truck, which comes to the first for the engine, gear box, and axles. We have offices in Tanzania, Zambia and Philippines to provide warranty service, and we have distributors in different countries all over the world to assist.
3) In time After-sales: We have set up over 240 spare parts centers and service outlets all over 80 countries, professional after-sales team solve your after sales problem within 3 working days or 5 working days, and all spare parts are available for you.
4) Experienced sales team and logistics team: Experienced sales team are at your service all the time and offer excellent service, professional logistics team work with international shipping company such as MSK&Hyundai to ship your trucks safely and cost-efficiently.
Company brief introduction:
SINOTRUK is one of the biggest heavy duty truck manufacturer in China, also the No. 1 for exporting, specialized in the researching, developing and manufacturing of heavy trucks and related key parts.
Now SINOTRUK has 6 truck production factories, 2 engine factories, 2 gearbox factories, 1 axle factory, and cooperated with other international company (STEYR, Germany MAN). MAN introduce its all series products and core technology through SINOTRUK.
WE, SINOTRUK HUAWIN, is SINOTRUK branch factory, located in Hubei Province, professional in producing different special vehicles, with annual capacity is over 20 000units of all kinds special trucks.
SINOTRUK includes: cargo truck, tractor truck, dump truck, concrete mixer, tanker truck, special purpose truck, garbage truck, tank truck, crane truck, flat bed semi trailer etc.
