Sinotruk howovacuum sewage suction truck camion vidangeur 6x4 with tanker volume 10cbm -20cbm for sale

Name: Sinotruk howovacuum sewage suction truck camion vidangeur 6x4 with tanker volume 10cbm 20cbm for sale
Brand: SINOTRUK
Price: 32 USD

Sinotruk howovacuum sewage suction truck camion vidangeur 6x4 with tanker volume 10cbm -20cbm for sale Manufactures

Transmission Type : Manual

Condition : New

Emission Standard : Euro 2

Fuel Type : Diesel

Tank Volume : 15,000 Liters, 15,000 liters

车身尺寸 : 8800*2550*3200 mm

Place of Origin : Hubei, China

Brand Name : SINOTRUK

Horsepower : 336HP

Gross Vehicle Weight : 25000

After-sales Service Provided : Online support, Video technical support, Overseas Call Centers, Free spare parts, Field maintenance and repair service

Type : sewage suction tanker truck

Color : Red or as customized

Driving type : LHD/RHD

Engine : SINOTRUK WD615.69

Engine Type : Mechanical

Horse Power : 360ps

Cabin : HW76 with one sleeper

Transmission : HW19710 manual

Shipment : RO-RO/40FR/Bulk Vessel

Packaging Details : 1 unit/40FR, nude pack for RO-RO or bulk vessel

Port : Main Port China

Supply Ability : 500 Unit/Units per Month

Price : $32,000.00 - $49,600.00/Units

Contact Now

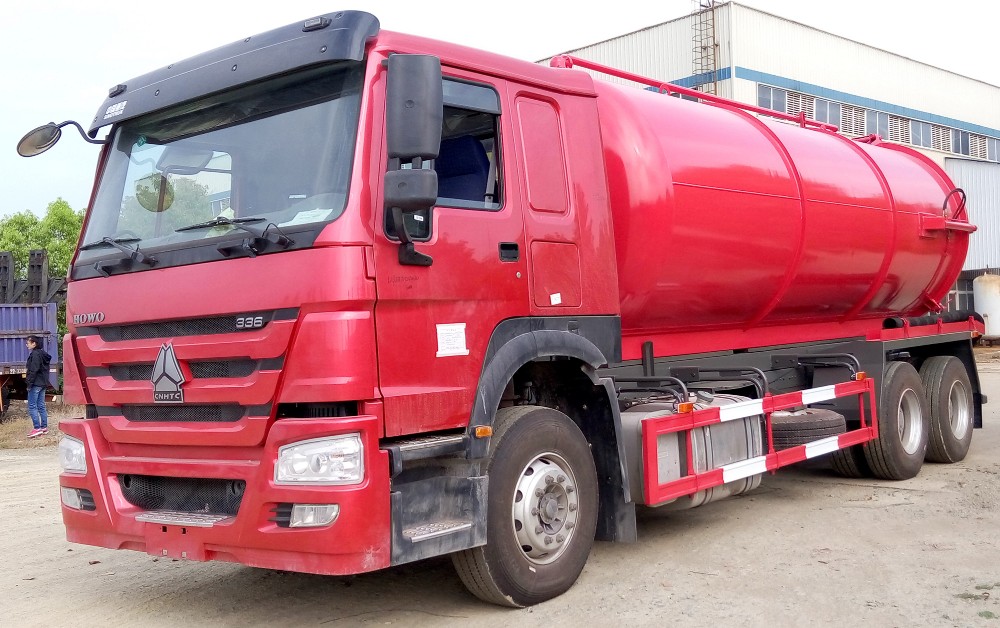

SINOTRUK HOWO 6X4 sewage truck

Except 6x4, there is also 4X2, smaller model

It is mainly used to transport industrial hazardous waste liquid, urban pollution liquid and construction sludge. It can be self-priming and self discharging, with fast working speed, large capacity and convenient transportation. It is especially suitable for the suction, transportation and discharge of sewage sludge. The product has advanced design, reasonable structure and convenient operation.

Features:

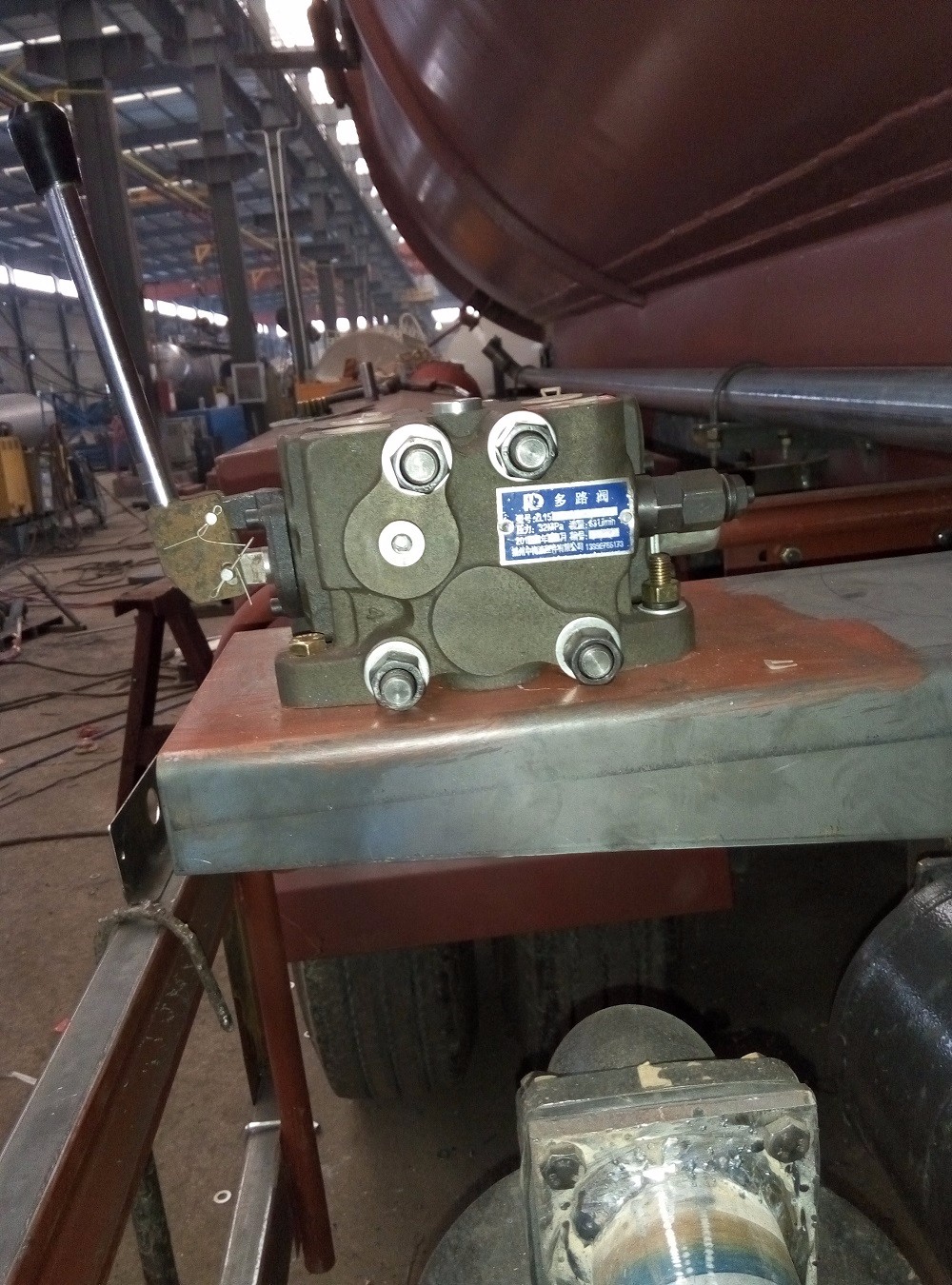

The vacuum pump adopts hydraulic transmission, the system works stably, has high reliability, high transmission efficiency and low failure rate

The tank body is lifted 0-40 degrees, which is convenient for material tilting; the back cover is opened 0-55 degrees, which is convenient for material tilting and personnel cleaning

The vacuum pump can be equipped with exhaust muffler for lower noise

Safety guarantee system: the water separator at the top of the tank body cooperates with the safety anti overflow at the bottom to prevent the liquid from entering the vacuum pump and the air intake system.

The liquid level of the tank is displayed, and the liquid height of the tank is confirmed in time.

The tank body is equipped with an electro acoustic alarm system to remind the operator of the vehicle status.

The difference between the two vehicles is as follows

1. The transportation object is wider, and the suction truck is mainly used for the suction and transportation of septic tank. The suction truck can transport feces and sewage, rainwater wells, sludge in ditches, sludge from chemical sewage pools.

2. The back cover of the suction truck can be opened: it can speed up the tilting speed, the viscous sediment is easy to tilt, and the personnel are easy to enter for maintenance.

3. The pipe of the suction truck is fixed with the tank, but the pipe of the suction truck can rotate 360 degrees.

4. It's easy to maintain the suction truck, but it's troublesome to maintain the suction truck

5. The tank can be lifted, and the back cover can be opened, but the manure truck can't.

Product Description

Specifications for HOWO sewage suction tanker truck
Cabin	Driving Model: 6x4 Left Hand Drive or Right Hand Drive
	HW76 cabin, with one sleeper and two seats, 2-arm windscreen wiper system with three speeds, damped adjustable driver's seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn, air conditioner, with transverse stabilizer, with 4-point support fully floating suspension + shock absorber.
	Condition: brand new
Engine	Model: SINOTRUK WD615.69
	Type: Diesel 4-stroke direct injection diesel engine, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling. Emission Standard: Euro II
	Displacement: 9.726L
Transmission	HW15710 manual gearbox, 10F & 2R
	Ratio: 14.28, 10.62, 7.87, 5.88, 4.38, 3.27, 2.43, 1.80, 1.34, 1.00, 13.91(R1), 3.18(R2)
Steering	ZF power steering, model ZF8118, hydraulic steering with power assitance
Front Axle	HF9, 1x9000 KGS Steering with doubleT-cross section beam
Rear Axle	HC16, 2x16000 KGS Pressed axle housing, central single reduction with hub reduction and with differential locks between wheels and axles. Ratio: 4.8
Brake	Service brake: dual circuit compressed air brake Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels Auxiliary brake: engine exhaust brake
Electrics	Operating voltage: 24 V, negative grounded Starter: 24 V, 5.4 Kw Alternator: 3-phase, 28 V, 1500 W Batteries: 2 x 12 V, 165 Ah Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light
Tires	315/80R22.5 or 12R22.5, tubeless tires with one spare tire. Optional: 12.00R20, radial tires
Fuel Tank	400 L
Tank Body	15 CBM, with rear back hole and anti-static
Overall Dimension	880025503200 mm

Sinotruk howovacuum sewage suction truck camion vidangeur 6x4 with tanker volume 10cbm -20cbm for sale

Warranty & After Sale Support

Warranty
Guarantee the main parts engine, gearbox and axles for one year or within 100,000 Kilometers (which comes first) under regular maintenance and correct operation.
After Sale Support
Offer spare parts at factory cost and free technical support during the whole life cycle of the truck and trailers (say 10 years);
Special service team with technial engineers is ready if any quality complains, will respond in 48 hours with feedback and solution.
