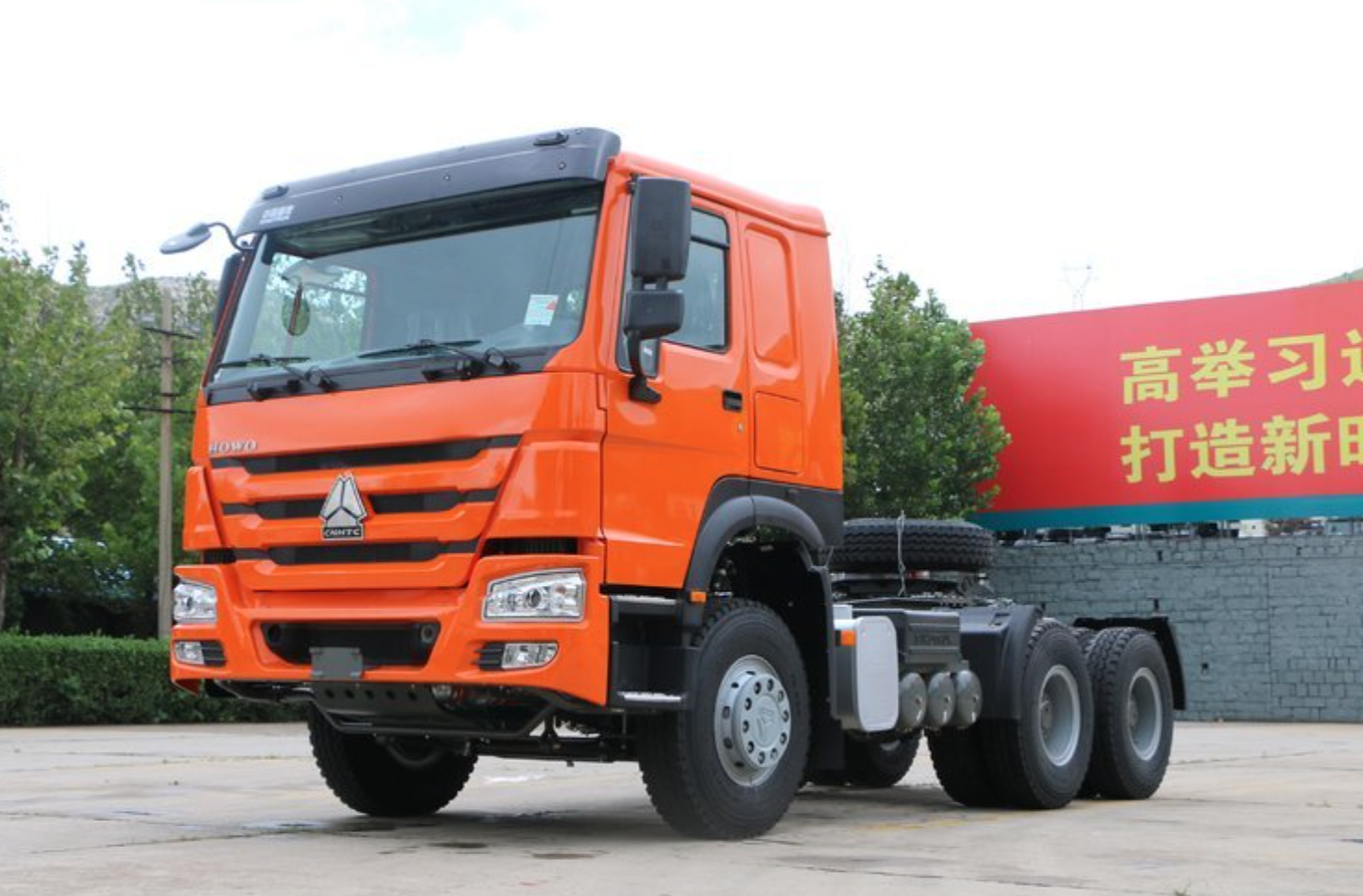

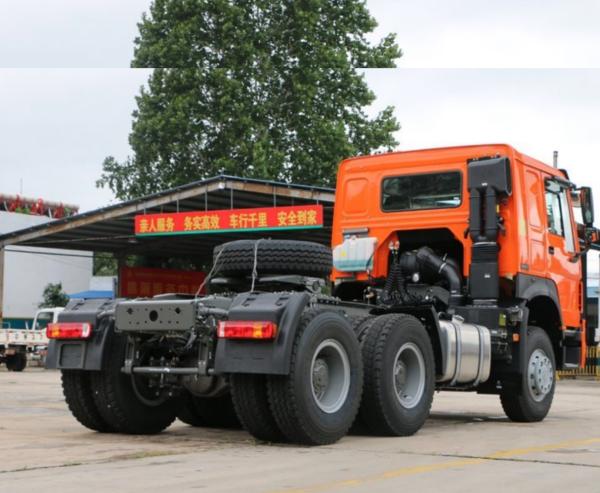

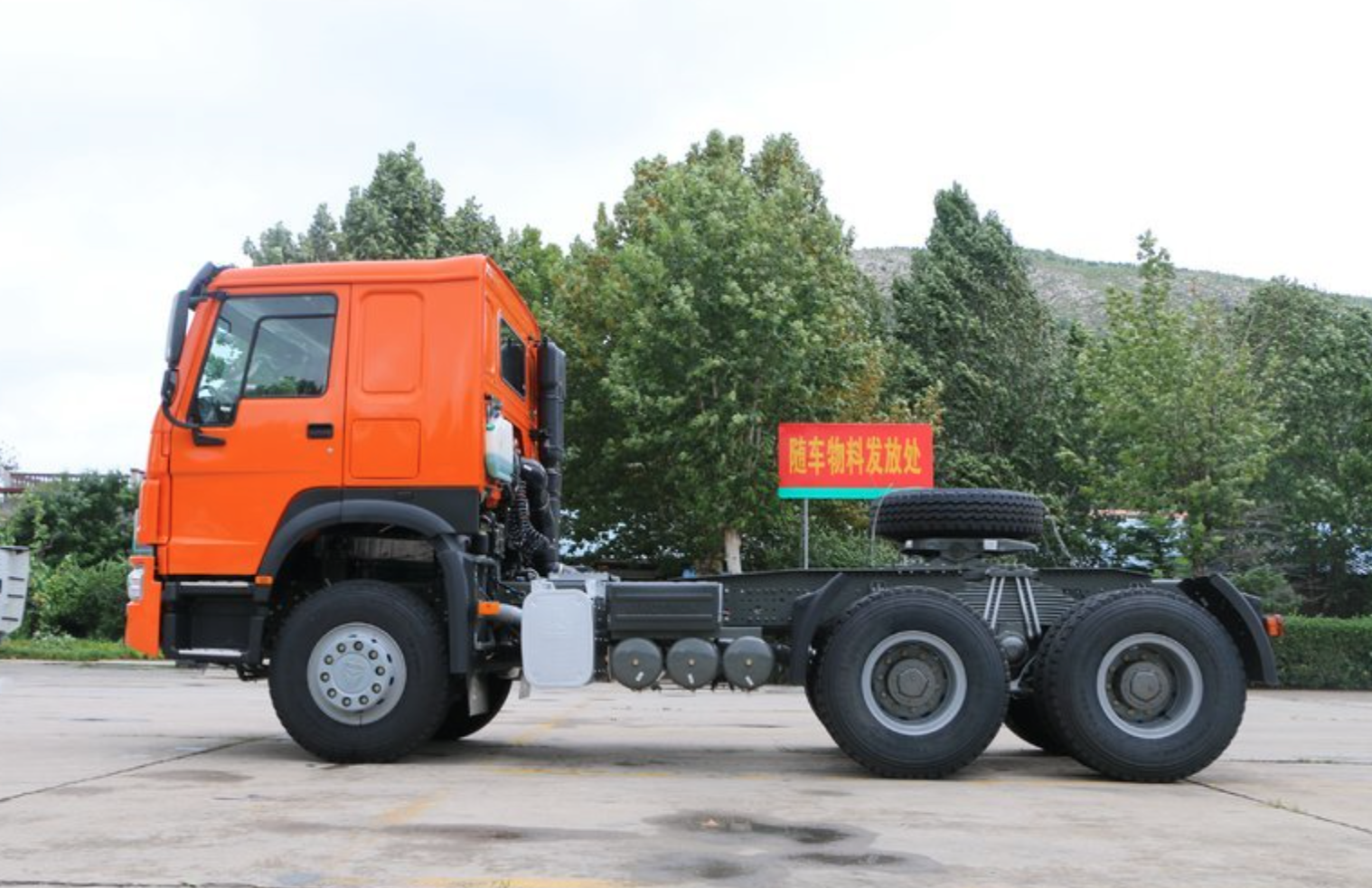

6X4 HOWO tractor truck
Specifications:
Cabin Driving type 6x4 RHD/LHD
HW 76 Standard cab, with one bed,
Overall dimensions (L x W x H)mm 6800× 2496× 2958
Wheel base (mm) 3225+1350
Weight in KGS Tare Weight 9230
Hauling Capacity 50000
Max. Driving speed(km/h) 92
Engine Brand Sinotruk
Model WD12.42
Horse Power(HP) 336-420 HP
Emission standard Euro II
Gearbox HW19710, 10-speed forward and 2 reverse gear
Clutch Reinforced diaphragm clutch, diameter 430mm
Tire 315/80R22.5 tubeless tire with one spare
Brakes Service brake: Dual circuit compressed air brake
Parking brake: (emergency brake): Spring energy, compressed air operating on rear wheels
Auxiliary brake: Engine exhaust valve brake
| Cabin | Driving type 6x4 | |
| | HW 76 cabin with A/C and one sleeper | |
| Vehicle Main Dimensions | Overall dimensions (L x W x H)mm | 6800x2500x3150 |
| | Wheel base (mm) | 3225+1350 |
| | Wheel track (front/rear) (mm) | 2022/1830/1830 |
| Weight in KGS | Tare Weight | 8800 |
| | Hauling Capacity | 45000 |
| | Front axles | Rated load 7 ton, drum brake |
| | Rear axles | Loading capacity 2*13 ton, MAN driving axle, drum brake |
| Max. driving speed(km/h) | 102 |
| Engine | Brand | SINOTRUK |
| | Model | WD615 series |
| | Type | 4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling |
| | Horse Power(HP) | 336-420 HP |
| | Max torque (N.m) | 1500/ 1100-1600 rpm |
| | Engine capacity (cc) | 9726 |
| Gearbox | HW19712 manual transmission, 12-fowards 2-reverse |
| Clutch | Reinforced diaphragm clutch, diameter 430mm |
| Steering Gear | ZF 8098,power steering, hydraulic steering with power assistance |
| Fuel tank (L) | 400 Liters Aluminum oil tank |
| Tire | 12.00R20 tire 11 pcs including one spare |
| Brakes | Service brake: dual circuit compressed air brake Parking brake :(emergency brake): spring energy, compressed air operating on rear wheels |
| Accessories | ABS, A/C, Air bag seat for driver, 2” fifth wheel |
| Cabin |
|
Why choose us:
1. SINOTRUK is the oldest and NO. 1 factory in China heavy-duty truck field. We work with Steyr and MAN.
2. As branch factory of SINOTRUK Group, we'll provide you factory-direct prices.
3. Mature technology, advanced production equipment, Strict quality control.
4. SINOTRUK has branches in over 40 countries, over 160 distributors, over 330 service centers and over 310 spare parts showrooms in overseas market.
Our advantages:
1) Reliable Quality: After working with top companies in truck industry like STEYR, MAN, VOLVO, with years of manufacturing experience and SINOTRUK group full range inspection system, a series inspections are well done before the exportation to ensure reliable quality.
2) Favorable price: Factory price, very competitive in the market. We, SINOTRUK Hubei Huawin is SINOTRUK branch factory.
3) In time Warranty: One year or 100,000km for on road trucks as tractor truck or 6 months or 60,000km for off road trucks as dump truck, which comes to the first for the engine, gear box, and axles. We have offices in Tanzania, Zambia and Philippines to provide warranty service, and we have distributors in different countries all over the world to assist.
4) In time After-sales: We have set up over 240 spare parts centers and service outlets all over 80 countries, professional after-sales team solve your after sales problem within 3 working days or 5 working days, and all spare parts are available for you.
5) Experienced sales team and logistics team: Experienced sales team are at your service all the time and offer excellent service, professional logistics team work with international shipping company such as MSK&Hyundai to ship your trucks safely and cost-efficiently.
Warranty:
1. One year / 100,000KM quality guarantee for three key parts (engine, transmission, axles), whichever comes first.
2. Other spare part could be supplied by OEM at cost price.
3. Regularly callback to know the vehicles working status.
4. Overseas engineers are always ready to be at service
What we do (Main Products)
1.Tractor truck / Dump Truck
2. Fire Fighting Truck / LPG Truck / LPG Tanker
3. Truck with crane / Truck mounted crane
4. Oil Tank Truck / Water truck / Water Sprinkler Truck
5. Concrete Mixer Truck / Bulk cement truck
6. Van truck / Cargo truck / Refrigeration truck
7. Recovery truck, High-altitude operation truck, Self loading garbage, Compactor garbage truck, Sewage truck.
8. Semi Trailer ( Flat bed semi trailer / Dump semi trailer / Side wall semi trailer / Low bed trailer / Fuel tanker semi trailer. etc. )

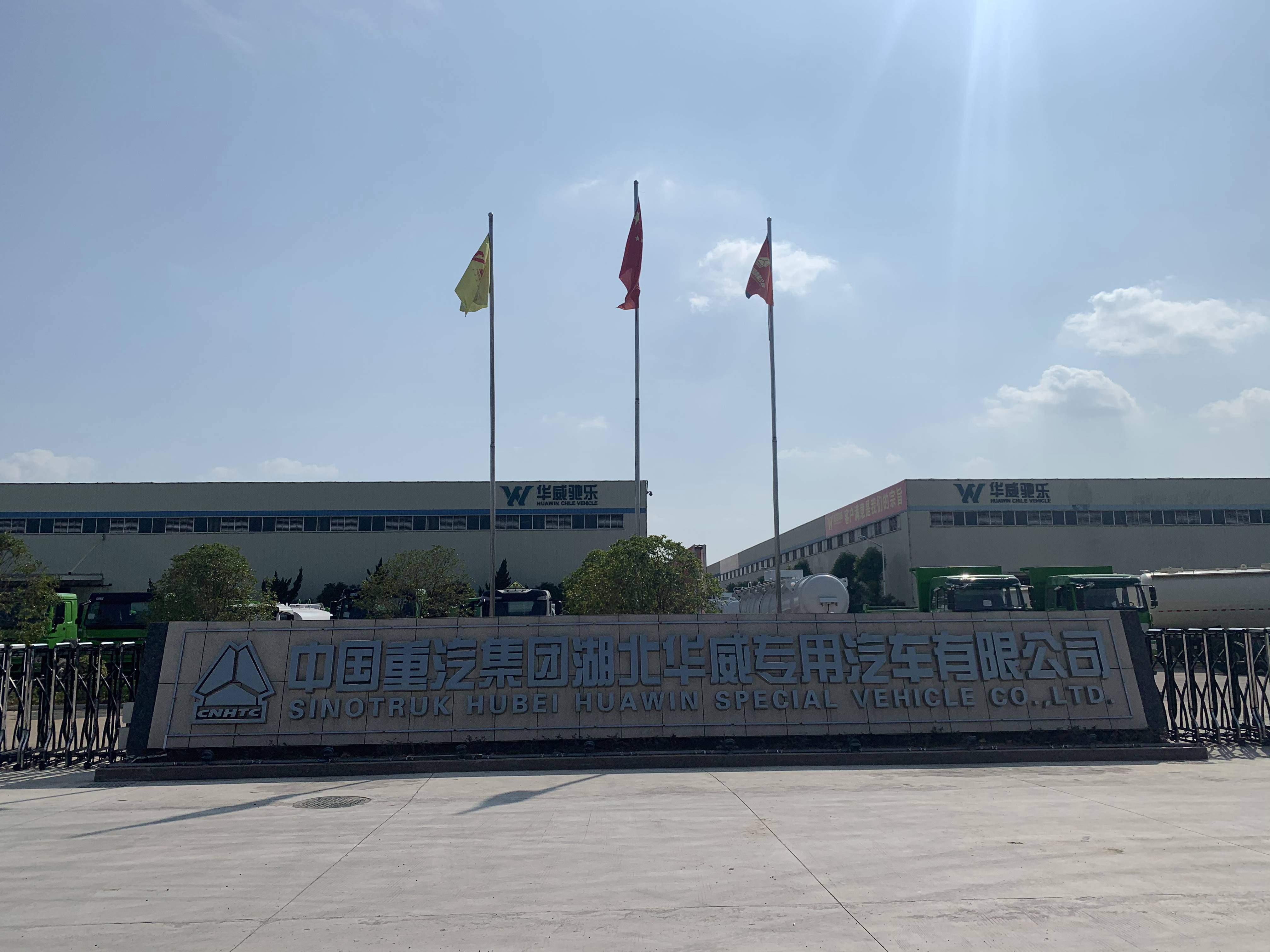

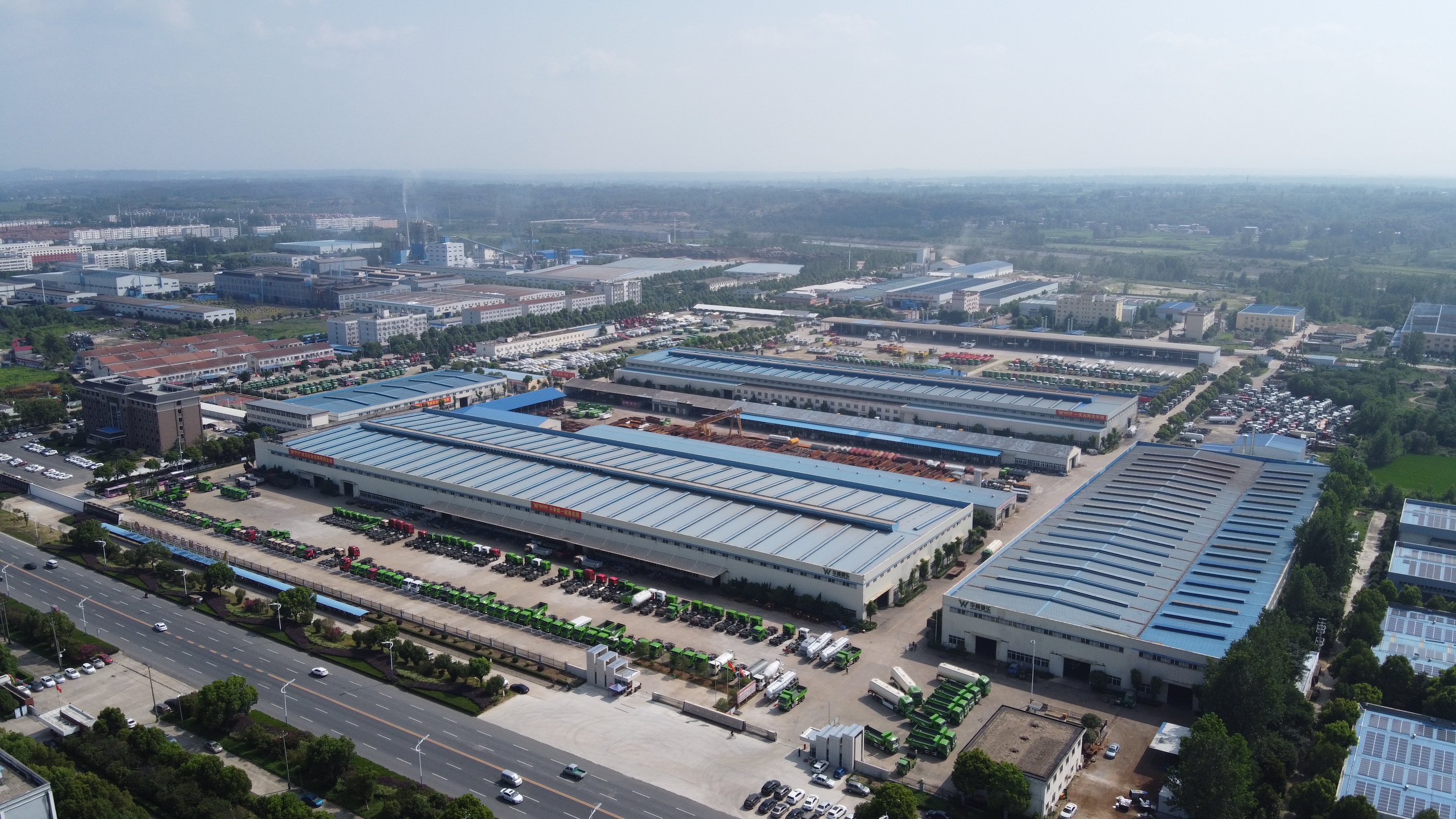

Company Introduction
SINOTRUK is one of the biggest heavy duty truck manufacturer in China, also the absolute No. 1 for exporting.
We manufacture HOWO tractor truck, dump truck, concrete mixer, tanker truck, flat bed semi trailer etc.
In 1983, SINOTRUK successfully introduced STEYR heavy duty truck project, in 2009, SINOTRUK signed an agreement with MAN from Germany, MAN becomes the second largest shareholder of SINOTRUK and is introducing its cabin, engine, axle and other parts into China.
