Use : Truck Trailer
Type : Semi-Trailer
Material : Steel
Size : Customised
Max Payload : 50T
Place of Origin : Hubei, China
Brand Name : Huawin
Certification : ce
Color : Blue or as customers' option
Logo : Can Be Designed as Customers' Option
Axle : 3
King Pin : JOST Brand 3.5" bolt-in
Suspension : Mechinal Suspension
OE NO. : Optional
Packaging Details : Nude Pack. The packing shall be in accordance with the export standard packing of the manufacturer, be suitable for long distance transportation of ocean and inland.
Port : China Main Port
Supply Ability : 1000 Unit/Units per Month
Price : $14,600.00 - $20,900.00/Units

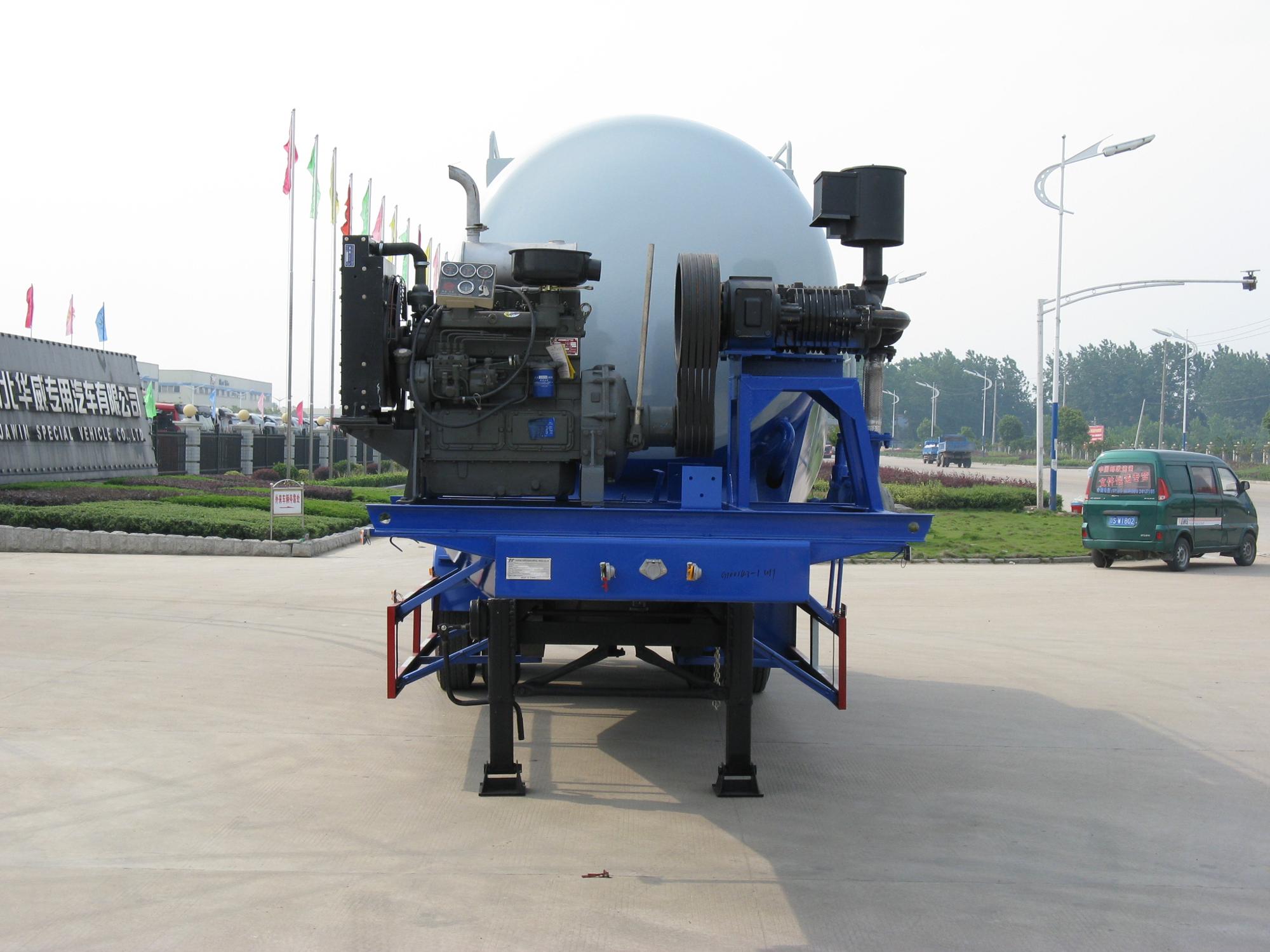

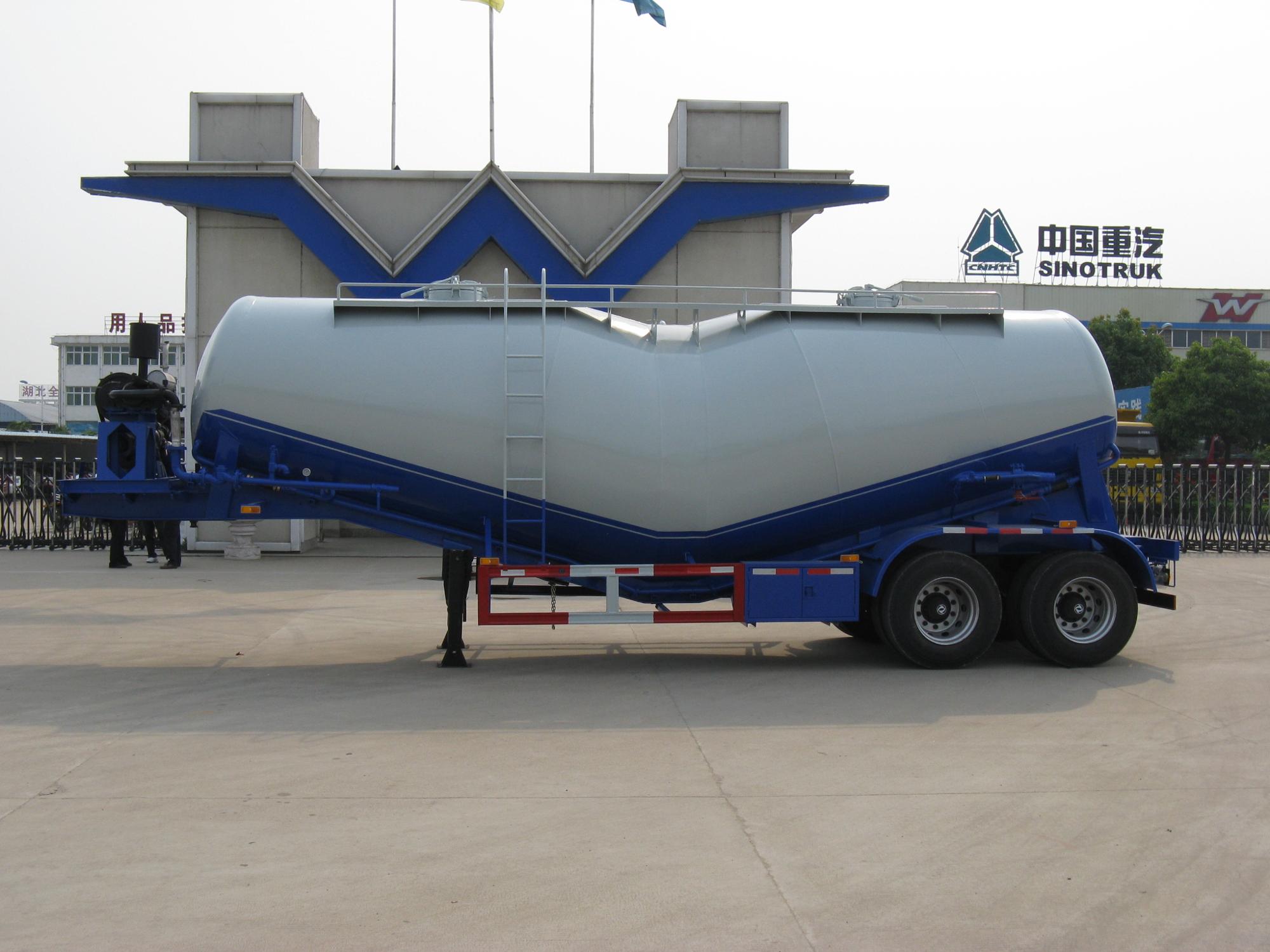

Bulk Cement Transporter Tank Truck Trailer
Specifications
(1) Bulk cement semi trailer
(2) 3 Axle
(3) Loading Capacity: 80000KG
(4) Total Volume: 70CBM
(5) Tank Body Material: 5mm or 6mm/Q235 carbon steel or Aluminum alloy
(6) Certification: ISO9001 CCC,SGS
Technical Parameters
Gross Weight | 80000KG | |
Kerb Weight | 11000KG | |
Loading Capacity | 80000KG | |
Dimensions | 13000x2500x3985mm Exact size depends on the final design | |
Tank Body Shape | Optional Round or V shape | |
Total Volume | 70CBM | |
Tank Body Material | 5mm or 6mm/Q235 carbon steel or Aluminum alloy | |
End Plate | 5mm or 6mm/Q235 carbon steel or Aluminum alloy | |
Manhole Cover | Carbon steel or aluminum alloy API manhole cover | |
Bottom Valve | Aluminum API Pneumatic Bottom Valve | |
Discharging Valve | Diameter is 3 inch or 4 inch | |
Compartments | Optional 1 or 2 or 3 or 4 or more compartments | |
Discharging Pipe | 4' rubber hose,2 pcs,6000mm/each | |
Axles | 13T/16T, BPW Brand or FUWA,HUJING Brand | |
Tire | 12.00R20, 11.00R20, 12.00R22.5, 315/80R22.5 | |
Rim | 8.5-20, 8.0-20, 9.0-22.5 | |
Suspension | Mechanical suspension | |
Spring Leaf | Width 90 mm, Thinckness 13/16mm, 10 Layer | |
King Pin | JOST brand 2.0 or 3.5 inch bolts type or welding type | |
Landing Gear | Jost brand, manual operation | |
Main Beam | Weldding design or special design I beam,connected by bolts and nuts,Q345 carbon steel material | |
Brake Chamber | 4 double chamber | |
Painting | Complete Chassis sand blasting to clean rust,1 coat of anticorrosive prime,2 coats of final paint |
![]() |
